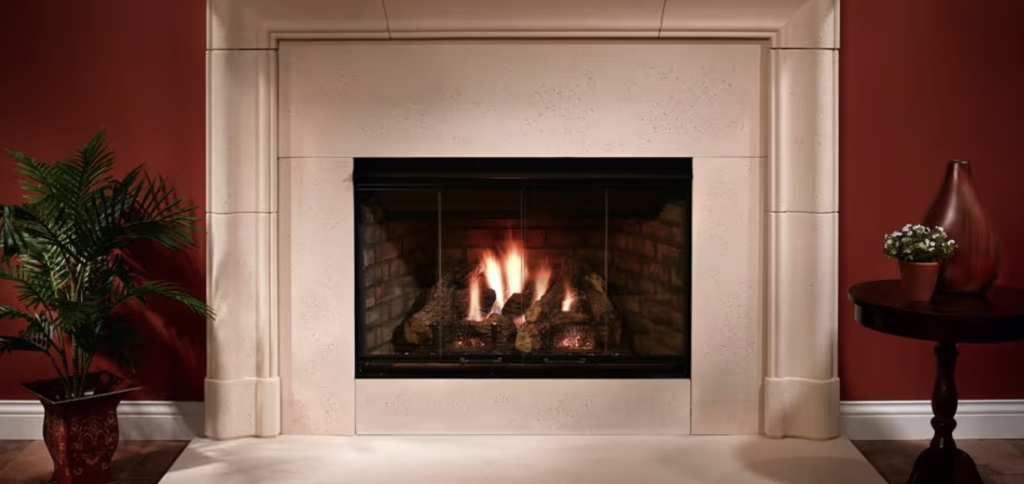

Reveal Gas Fireplace
Recreate the timelessness of a wood-burning fire with the Reveal. These open-hearth gas fireplaces provide full, generous flames, comforting heat, as well as featuring optional doors.
- 36″ or 42″ viewing area
- Unique burner and open-hearth design create an authentic flame
- Traditional Brick Interior Panels
Product Brochures
Mantels Shelves and Surrounds
Reveal (HTL)
Reveal (MAJ)
Reveal (Canadian French) (MAJ)
Installation Manuals
Service Parts
Architect Guides
Reveal 42 Majestic
RBV4842 Heatilator
Reveal 36 Majestic
RBV4236 Heatilator
CAD Drawings
Model Specifications
RBV4842 42″ Gas Fireplace – BV
| Unit Width: | 47″ |
| Unit Height: | 39-1/2″ |
| Unit Depth: | 21-1/2″ |
| Unit Rear Width: | 29-3/4″ |
| Framing Width: | 48″ |
| Framing Height: | 39-3/4″ |
| Framing Depth: | 22″ |
| Framing Front Width: | 48 |
| Framing Back Width: | 48 |
| BTU/hr Input: | 43,000 |
| Viewing Area: | 42″ |
RBV4236 36″ Gas Fireplace – BV
| Unit Width: | 41″ |
| Unit Height: | 39-1/2″ |
| Unit Depth: | 21-1/2″ |
| Unit Rear Width: | 23-3/4″ |
| Framing Width: | 42″ |
| Framing Height: | 39-3/4″ |
| Framing Depth: | 22″ |
| Framing Front Width: | 42 |
| Framing Back Width: | 42 |
| BTU/hr Input: | 40,000 |
| Viewing Area: | 36″ |
